Sniper

rapidly adjust spread pattern on-the-fly



BBI sniper

BBI Sniper is engineered for application widths up to 120 feet, and uses patent pending technology to rapidly adjust its spread pattern on-the-fly. The BBI Sniper's tremendous application width and superior spread pattern control make for an efficient applicator that reduces overlap and keeps fertilizer out of environmentally sensitive areas. The simple spread pattern control is easy to set and maintain to keep high acreage operators moving fast.

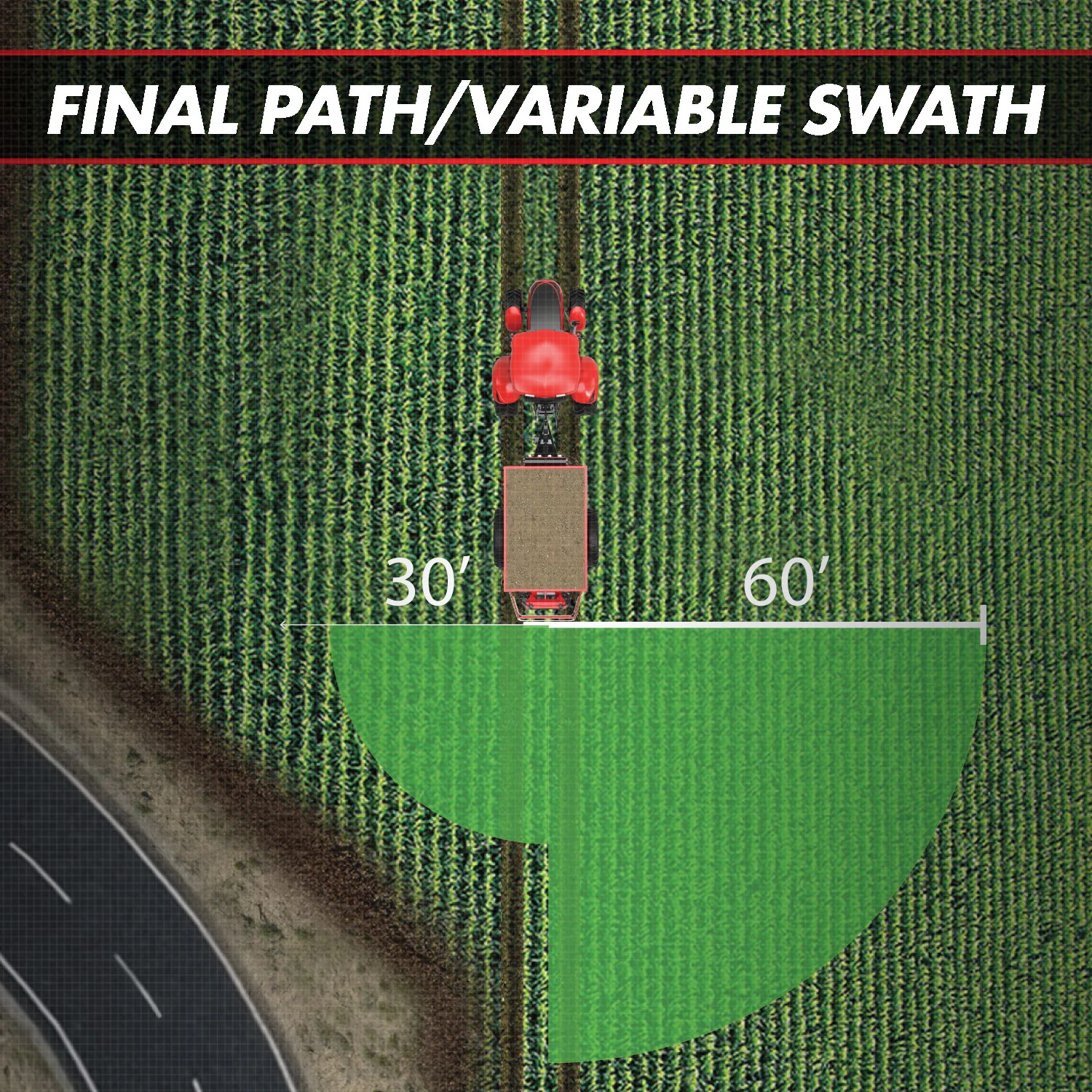

 On the final pass through a field, the swath is able to automatically adjust to complete coverage of the field with minimum overlap.

On the final pass through a field, the swath is able to automatically adjust to complete coverage of the field with minimum overlap.

 Applying off of one side only.

Applying off of one side only.

 On the final pass through a field, the swath is able to automatically adjust to complete coverage of the field with minimum overlap.

On the final pass through a field, the swath is able to automatically adjust to complete coverage of the field with minimum overlap.

 When driving into point rows or along irregular areas, such as ditch bands, the application swath extends up to 120’, 60’ per side, and goes as low as 0’.  A. Swatch is maximum (past)  B. Point is time (present)  C. Swatch has collapsed (future)

When driving into point rows or along irregular areas, such as ditch bands, the application swath extends up to 120’, 60’ per side, and goes as low as 0’.

A. Swatch is maximum (past)

B. Point is time (present)

C. Swatch has collapsed (future)


FEATURES

Application:

  • 120 foot application width saves time and fuel costs through fewer passes

  • Meets controlled traffic farming standards (120 foot/36 meter-wide pattern)

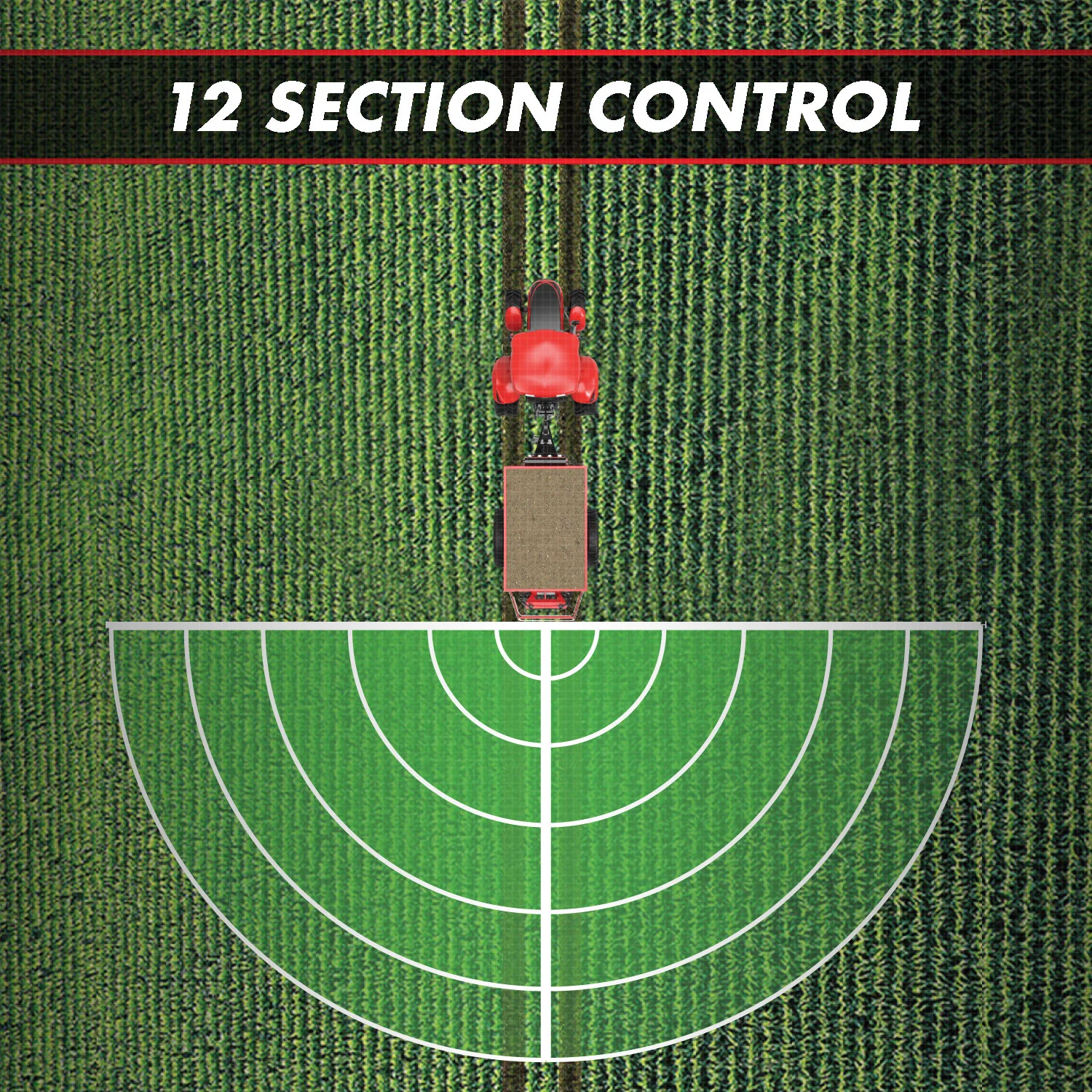

  • 12 Section, automatic, spread pattern adjustment / swath control to reduce over application and minimize spreading into environmentally sensitive areas

  • High clearance adjustable axle (90-120 inches) allowing for in season application

  • Largest capacity of any single-axle top-dress spreader on the market

  • Self contained, continuous-duty hydraulics platform for maximum tractor compatibility

  • 3 independent, automatically adjusted, application control systems give optimum response time to prescription controls:


SPECIFICATIONS

HOPPER

- Capacity: 282 cubic feet / Ton: 9.2
- Painted, 409 stainless steel

- Working Width Fertilizer up to 120 feet

- ISOBUS Compatible 12 section spread pattern control

- Roll tarp installed

- Secondary hopper split and 60 cubic foot secondary metering drive is optional

- Fill screens with access doors to hopper(s)

- Hopper screen/filter

DRIVE

- PTO Driven Self Contained Hydraulic system:

- Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline

- 1000 RPM Series 6 CV 1 3/8 21 Spline

- Includes: 4 Manifolds and PWM Valves to control each spinner and each conveyor. Heat shrink fittings.

CONVEYER CHAIN

- Twin 12 inch, 304 stainless steel mesh conveyor chains

- Maximum rates 1000 lbs/acre at 8 mph

SPINNERS

- Standard: Twin Independently Driven Stainless Steel Spinners

TIRE & SUSPENSION

- Standard: Single Axle High Clearance Frame with 90 in. to 120. Adjustable Axle (Adjustable in 6 in. Increments.)

- Standard: 90 in. to 120 in. Adjustable Axle w/380/90 R46 Tires
- Optional: 80 in. to 110 in. Adjustable Axle w/380/90 R46
Optional: 800/65 R32 Tires

LIGHT PACKAGE

- Standard: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit

Optional Hydraulic Fan Drive
- Requires 21 GPM operating at 2500 PSI

- 3/4 inch hydraulic lines
- 1/2 inch couplers and 3/4 inch high flow couplers included
- Case drain required

TARP OPTIONS

- Standard: None
- Optional: Vinyl Cable Lock Tarp


SCALES

-Standard: 8 Digi-Star Load Cells - Traditional weight readings to assess payload. The ECU's Dynamic Metering and Angle Compensation functionalities are continuously monitoring scale feedback to ensure high levels of accuracy during application

PROVEN SPLIT CHAIN ISOBUS ECU

- Hydraulic valve control for dual belt/chain, dual spinner spreader.
- Linear actuator control of left and right side drop-points.
- Static or Dynamic weighing system including Angle Compensation
- Automatic Section Control for 2 or 12 sections.
- Monitor Compatibility: JD 2630, JD 4640, Trimble TMX 2050, Trimble FM 1000 / FMX, Pro 700
- Contact Salford BBI regarding other monitor compatibility



SNIPER

Ideal for: 120 foot dry fertilizer application with a high capacity single axle hopper for high speed application. 12 section spread pattern control to reduce overlap and application into environmentally sensitive areas.
